• Built-in spectrum analyzer (100 kHz to 7.1 GHz)
• Built-in cable and antenna analyzer (10 MHz to 4 GHz optional)
• Built-in power meter (10 MHz to 7.1 GHz)
• Transmitter analyzer (WCDMA/HSDPA, GSM/GPRS/EDGE, WiMAX, CDMA, EVDO)
• Interference analyzer (100 kHz to 7.1 GHz)
• Channel scanner (100 kHz to 7.1 GHz)
• High Accuracy Power Meter (50 MHz to 6 GHz)
• Power monitor (100kHz to 50 GHz)
• Built-in viewable Bias Tee (12V-24V)
• T1/FT1 analyzer
• T3/T1/FT1 analyzer
• 2 Mb/s - E1 analyzer
• GPS receiver

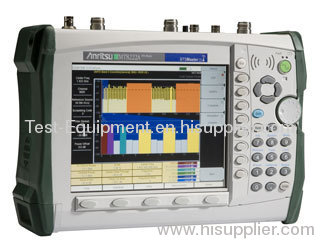

The new BTS Master is an integrated multi functional base station testtool eliminating the need to carry and learn multiple test sets. TheMT8222A measurement capabilities include spectrum analysis includingsmart measurements, precision return loss, VSWR, cable loss,distance-to-fault, two port gain/loss, one port and two port magnitudeand phase, interference analysis, spectrogram, RF and demodulationmeasurements for WCDMA/HSDPA, GSM/GPRS/EDGE, CDMA, EVDO, Fixed WiMAX andMobile WiMAX, demodulating WCDMA/HSDPA, CDMA, EVDO?over the air (OTA),location information, enhanced frequency reference oscillator accuracy,variable bias tee, 2 Mb/s - E1, T3 and T1 measurements. The HighAccuracy Power Meter (Option 19) provides true RMS measurements from 50MHz to 6 GHz.

The BTS Master can be configured with an interference analyzer, which ismaximized by the MT8222A's built-in low-noise preamplifier. The resultis that interfering signals down to -162 dBm can be identified andlocated, allowing technicians/RF engineers to better address qualityissues that affect user service. Interfering signals can be identifiedusing the Spectrogram display

Master Software Tools (MTS), comprehensive data management and analysissoftware is user friendly and it is easy to manage, archive and analyzesystem performance, trends and the general health of monitored basestations.

The MT8222A is shipped with a User's Guide, a soft carrying case, an AC -DC Adapter, an Automotive Cigarette Lighter/12 Volt DC Adapter, a CDROM containing Master Software Tools and USB driver, a USB A-mini Bcable, an Ethernet Cable, a rechargeable Li-ion battery pack, a?256 MBCompact Flash module, a type-N male to SMA female adapter, a type-N maleto BNC female adapter.
